basis::packable Class Reference

A base class for objects that can pack into an array of bytes. More...

#include <byte_array.h>

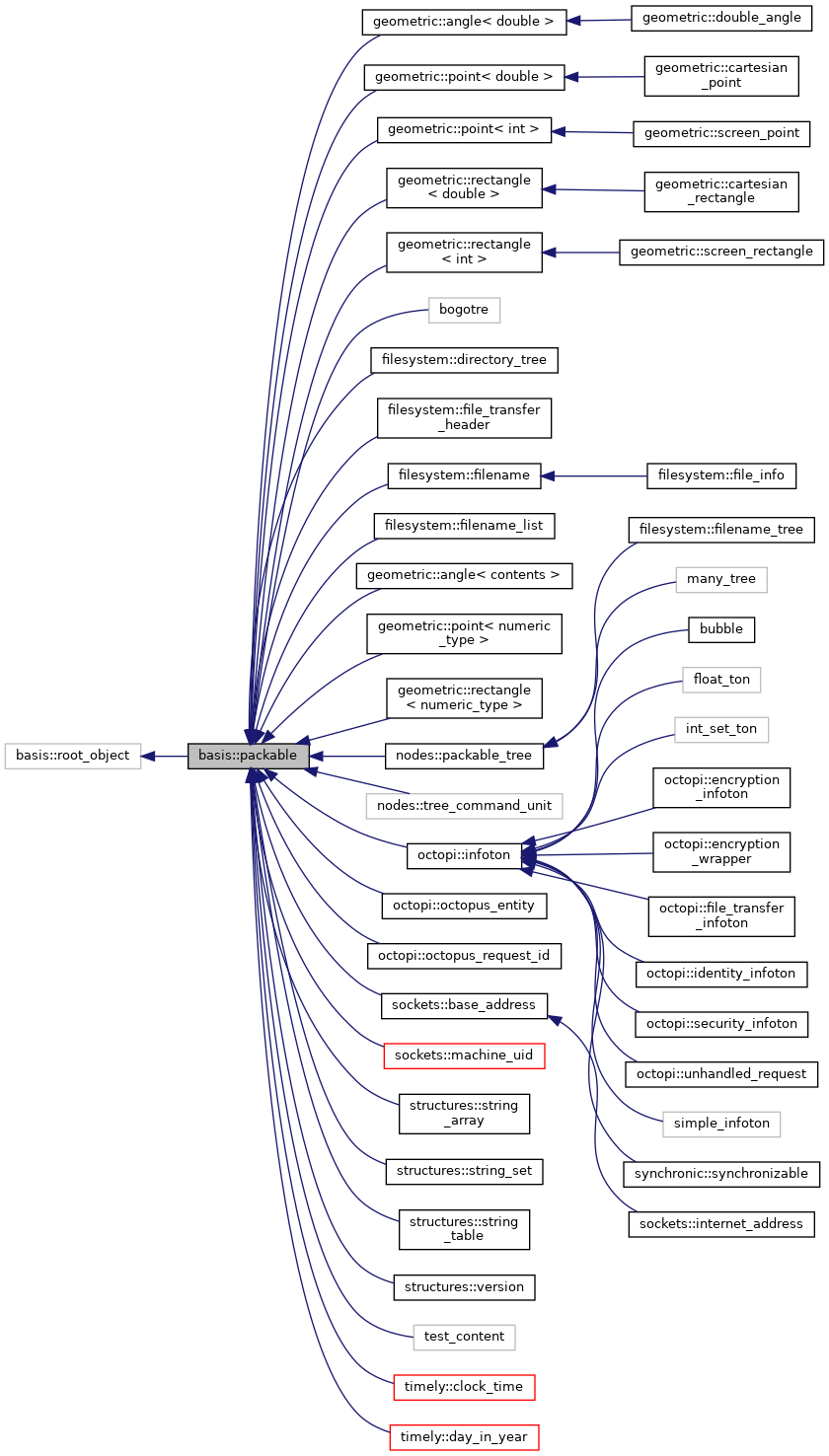

Inheritance diagram for basis::packable:

Collaboration diagram for basis::packable:

Public Member Functions
virtual void	pack (byte_array &packed_form) const =0
	Creates a packed form of the packable object in "packed_form".
virtual bool	unpack (byte_array &packed_form)=0
	Restores the packable from the "packed_form".
virtual int	packed_size () const =0
	Estimates the space needed for the packed structure.

Detailed Description

A base class for objects that can pack into an array of bytes.

A packable is an abstract object that represents any object that can be transformed from a potentially deep form into an equivalent flat form. The flat form is a simple extent of memory stored as bytes.

Definition at line 86 of file byte_array.h.

Member Function Documentation

pack()

virtual void basis::packable::pack ( byte_array &  packed_form ) const

pure virtual

Creates a packed form of the packable object in "packed_form".

This must append to the data in "packed_form" rather than clearing prior contents.

Implemented in geometric::angle< contents >, geometric::angle< double >, geometric::point< numeric_type >, geometric::point< double >, geometric::point< int >, geometric::rectangle< numeric_type >, geometric::rectangle< double >, geometric::rectangle< int >, filesystem::directory_tree, filesystem::file_info, filesystem::filename, filesystem::filename_list, filesystem::filename_tree, filesystem::file_transfer_header, structures::string_set, structures::string_array, structures::string_table, timely::clock_time, timely::day_in_year, timely::time_locus, octopi::octopus_entity, octopi::octopus_request_id, octopi::identity_infoton, octopi::unhandled_request, sockets::internet_address, sockets::machine_uid, octopi::encryption_infoton, octopi::encryption_wrapper, octopi::file_transfer_infoton, octopi::security_infoton, bubble, octopi::infoton, synchronic::synchronizable, and structures::version.

packed_size()

virtual int basis::packable::packed_size ( ) const

pure virtual

Estimates the space needed for the packed structure.

Implemented in geometric::angle< contents >, geometric::angle< double >, geometric::point< numeric_type >, geometric::point< double >, geometric::point< int >, geometric::rectangle< numeric_type >, geometric::rectangle< double >, geometric::rectangle< int >, filesystem::directory_tree, filesystem::file_info, filesystem::filename, filesystem::filename_list, filesystem::filename_tree, filesystem::file_transfer_header, structures::string_set, structures::string_array, structures::string_table, structures::version, timely::clock_time, timely::day_in_year, timely::time_locus, octopi::octopus_entity, octopi::octopus_request_id, octopi::identity_infoton, octopi::unhandled_request, sockets::internet_address, sockets::machine_uid, octopi::encryption_infoton, octopi::encryption_wrapper, octopi::file_transfer_infoton, octopi::security_infoton, bubble, octopi::infoton, and synchronic::synchronizable.

unpack()

virtual bool basis::packable::unpack ( byte_array &  packed_form )

pure virtual

Restores the packable from the "packed_form".

This object becomes the unpacked form, and therefore must lose any of its prior contents that depend on the data in "packed_form". This is up to the derived unpack function to figure out. The "packed_form" is modified by extracting all of the pieces that are used for this object; the remainder stays in "packed_form". true is returned if the unpacking was successful.

Implemented in geometric::angle< contents >, geometric::angle< double >, geometric::point< numeric_type >, geometric::point< double >, geometric::point< int >, geometric::rectangle< numeric_type >, geometric::rectangle< double >, geometric::rectangle< int >, filesystem::directory_tree, filesystem::file_info, filesystem::filename, filesystem::filename_list, filesystem::filename_tree, filesystem::file_transfer_header, structures::string_set, structures::string_array, structures::string_table, timely::clock_time, timely::day_in_year, timely::time_locus, octopi::octopus_entity, octopi::octopus_request_id, octopi::identity_infoton, octopi::unhandled_request, sockets::internet_address, sockets::machine_uid, octopi::encryption_infoton, octopi::encryption_wrapper, octopi::file_transfer_infoton, octopi::security_infoton, bubble, octopi::infoton, synchronic::synchronizable, and structures::version.

Referenced by nodes::packable_tree::recursive_unpack().

---

The documentation for this class was generated from the following file:

• /opt/feistymeow.org/feisty_meow/nucleus/library/basis/byte_array.h
